Steel detailing,
end to end.
From the first RFQ to the last bolt in the air — AKR Steel Detailing Services LLC produces the drawings, models and connection packages that fabricators and erectors build from.
Six disciplines. One accountable desk.
Every service ships with defined deliverables — you always know exactly what lands in your inbox, and when.
Shop Drawings
Fabrication-ready drawings for beams, columns, braces and assemblies — dimensioned, pieced and ready for the shop floor.
Erection Drawings
Field-ready erection plans that keep crews moving — clear marks, elevations and installation sequencing.
3D Modeling & BIM
Coordinated Tekla and SDS2 models built for clash-free coordination with GC and MEP teams.
Connection Design
Engineered connections with calculations, backed by US-certified structural PEs.
Anchor Bolt Plans
Precise anchor bolt setting plans and templates that keep foundation work on schedule.
Miscellaneous Steel
Stairs, handrails, ladders, platforms and misc. metals detailed with fabrication in mind.
A process built for zero surprises.
Five stages, each with a defined output. You see progress weekly — not just at delivery.
Scope & RFQ review
We review the bid set, specs and scope gaps, then return a fixed-fee quote within 24 hours.
Kickoff & model setup
A dedicated FTP workspace opens; grids, codes and connection standards are locked with your team.
Modeling & connections
Tekla / SDS2 modeling runs in parallel with engineered connection design — no idle handoffs.
QC & PE review
Multi-stage checking on every sheet; connection packages stamped by US-certified PEs where required.
IFC delivery & support
Issue-for-construction packages, revision-controlled drops, and field support across 3 working shifts.

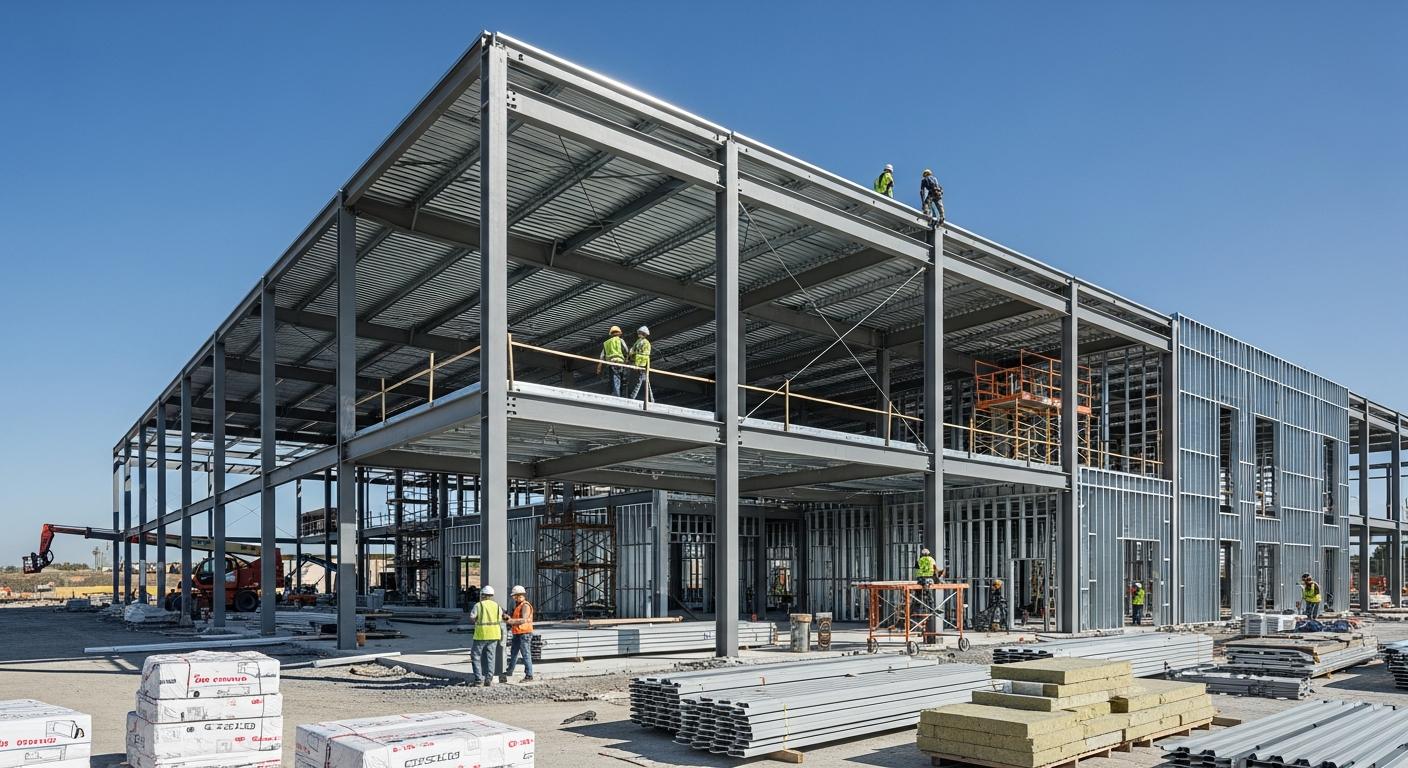

Wherever steel goes up.
Have a set of drawings to detail?
Send your bid set or IFC package — our engineering team responds within one business day.
